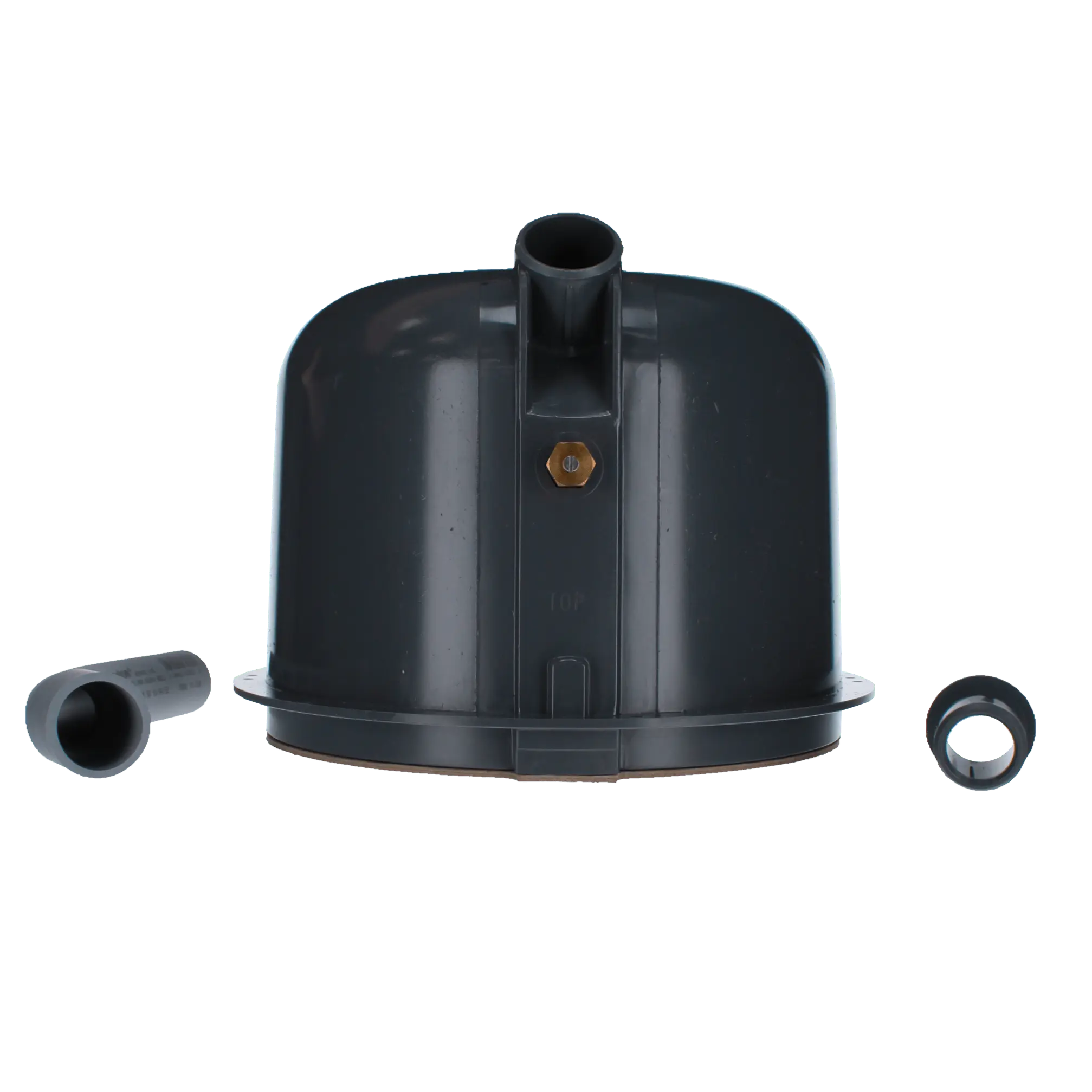

Jiffy Niche and DuraNiche fixture housings are injection-molded of PVC for superior performance, non-corrosive dur­ability and plumbing versatility. DuraNiche comes in versions for concrete/gunite pools, vinyl/fiberglass pools, or for concrete/gunite spas.

Common to all models:

• Injection-molded PVC fixture housing for corrosion-free performance

• UL approved sweep elbow fitting, coupling and reducer, included in SP0600U, SP0607U and SP0601U, meet the high­est standard and provide the most convenient installation

• All SP0600U and SP0607U niches have a 45° 1" outlet, which can be adjusted for top or rear conduit connection using the 45° UL approved sweep elbow (included). The SP0601U niche has a 1" rear outlet, which can be adjusted to 45°

• UL approved 1" to 3/4" adapter (included)

• Internally-threaded connection for pressure testing of conduit line

• UL Listed

• Complies with NEC 2002 with over 9 square inches of bonding surface area (SP0600U and SP0601U)

• 3/4" set-back plaster flange with tie-off holes to secureto re-bar and assure positioning during guniting

• Unique 90° ledge at the flange bottom prevents “slumping” during plastering

• The SP0601 small diameter niche has extra space for easy coiling and storage of the relamping cord, Vinyl/Fiberglass (SP0607U)

• Fits all standard punch designs, no tooling modifications are required

• Incorporates the dependability of Hayward’s proven wall panel sealing method (SP0608U)

• Screw on mounting nut design. No screws required to mount through pool wall

• Standard 6" hole size
