Hayward | HL32950VSP | TriStar VS 950 Variable Speed Pool Pump – 2.7 THP, 115/230V, Omnidirectional Controls

Hayward | HL32950VSP | TriStar VS 950 Variable Speed Pool Pump – 2.7 THP, 115/230V, Omnidirectional Controls

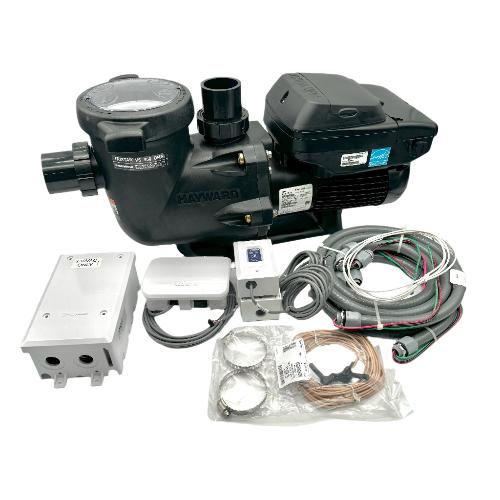

The Hayward HL32950VSP TriStar VS 950 is a high efficiency, variable-speed pool pump engineered for modern energy savings and reliability. With dual voltage capability (115/230V) and a wide speed range, it replaces traditional single speed pumps up to 3 HP delivering significant savings in power consumption while maintaining strong hydraulic performance.
Key Features
-
Model HL32950VSP / SP32950VSP (TriStar VS 950) variable speed pump
-
Up to 2.7 THP (total horsepower) at 230V, or 1.5 THP at 115V
-
Speed range: 600 to 3,450 RPM for flexible flow control
-
2″ × 2½″ CPVC union inlet/outlet for easy retrofitting into existing plumbing
-

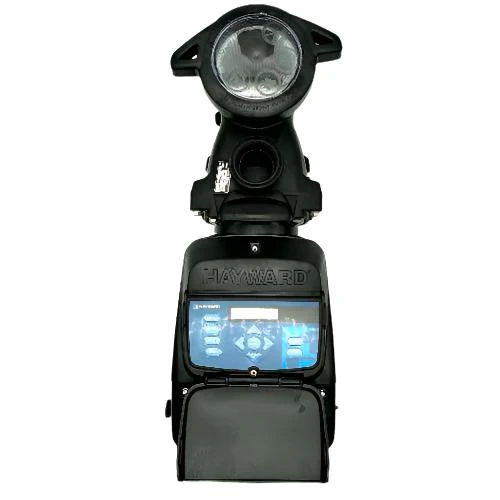

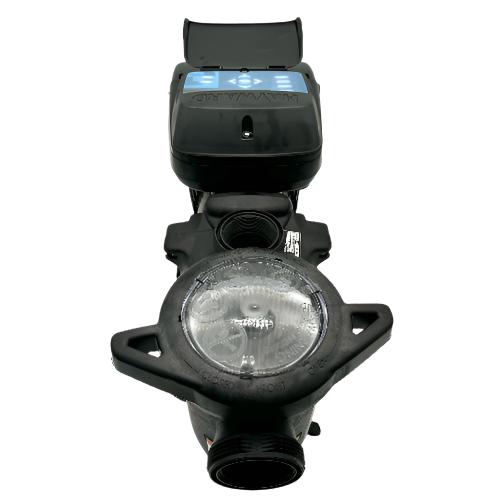

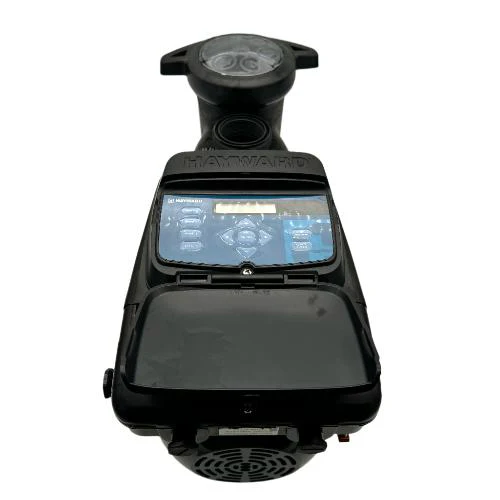

Built in omnidirectional touchpad control that can be wall mounted or pump mounted
-
Dual-voltage wiring (115V / 230V) simplifies replacement or upgrade jobs
-
Chemical-resistant Viton shaft seal for extended durability against harsh pool water
-
ENERGY STAR certified for energy efficiency and possible utility rebates
-
Quiet operation upgraded motor drive reduces noise at high speed
-
4-year extended OEM warranty when installed by a qualified Hayward partner
Product Overview
The Hayward HL32950VSP (TriStar VS 950) is designed to replace most high-performance single-speed pumps up to roughly 3 HP, delivering significantly lower operating costs with its advanced variable-speed technology.
Its dual-voltage design gives flexibility in installation and retrofit scenarios, while the 2″ × 2½″ union ports minimize plumbing changes. The rotatable omnidirectional touchpad allows you to mount or view controls from various angles ideal for tight equipment pad layouts.
With an optional 4-year extended warranty and ENERGY STAR certification, the TriStar VS 950 (HL32950VSP) is engineered for long term reliability, energy savings, and a professional grade upgrade path for pools currently using single-speed or earlier-generation pumps. Would you like a catalog style ecommerce listing for this unit (description, features, overview) formatted like your other products?
Original: $2,866.37
-65%$2,866.37
$1,003.23Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Hayward HL32950VSP TriStar VS 950 is a high efficiency, variable-speed pool pump engineered for modern energy savings and reliability. With dual voltage capability (115/230V) and a wide speed range, it replaces traditional single speed pumps up to 3 HP delivering significant savings in power consumption while maintaining strong hydraulic performance.
Key Features
-
Model HL32950VSP / SP32950VSP (TriStar VS 950) variable speed pump
-
Up to 2.7 THP (total horsepower) at 230V, or 1.5 THP at 115V
-
Speed range: 600 to 3,450 RPM for flexible flow control
-
2″ × 2½″ CPVC union inlet/outlet for easy retrofitting into existing plumbing
-
Built in omnidirectional touchpad control that can be wall mounted or pump mounted
-
Dual-voltage wiring (115V / 230V) simplifies replacement or upgrade jobs
-
Chemical-resistant Viton shaft seal for extended durability against harsh pool water
-
ENERGY STAR certified for energy efficiency and possible utility rebates
-
Quiet operation upgraded motor drive reduces noise at high speed
-
4-year extended OEM warranty when installed by a qualified Hayward partner
Product Overview
The Hayward HL32950VSP (TriStar VS 950) is designed to replace most high-performance single-speed pumps up to roughly 3 HP, delivering significantly lower operating costs with its advanced variable-speed technology.
Its dual-voltage design gives flexibility in installation and retrofit scenarios, while the 2″ × 2½″ union ports minimize plumbing changes. The rotatable omnidirectional touchpad allows you to mount or view controls from various angles ideal for tight equipment pad layouts.
With an optional 4-year extended warranty and ENERGY STAR certification, the TriStar VS 950 (HL32950VSP) is engineered for long term reliability, energy savings, and a professional grade upgrade path for pools currently using single-speed or earlier-generation pumps. Would you like a catalog style ecommerce listing for this unit (description, features, overview) formatted like your other products?
